Meraki Interface Event Monitor

Updates and alerts on interface stats for Meraki devices.

Overview​

The Cisco Meraki Interface Event Monitor watches over your Meraki interfaces and sends you alerts about their status.

Use Cases​

  • Receiving alerts about interface status changes
  • Closely monitoring favorite interfaces with dedicated settings

Monitoring Options​

This event monitor provides the following options:

  • Alert with [Info/Warning/Error/Critical] if the Meraki API cannot be contacted
    Use this option to receive an alert of your choice if FrameFlow cannot contact your device.

  • Alert with [Info/Warning/Error/Critical] if an interface status changes
    This option will send an alert if any interface status changes between event monitor runs.

  • Alert with [Info/Warning/Error/Critical] if any favorite interface is down
    This option will alert you with your choice of alert if any interface marked as favorite is down.

Note: This event monitor only works with the managed switch (MS) Meraki device type.

Authentication and Security​

The authentication profile you choose must be of the type "Meraki" and include your Meraki API key.

Protocols​

Data Points​

This event monitor generates a data point for each port detected that denotes if the interface is up or down. If it's up, the event monitor will return a value of 1. The event monitor will return a value of 0 if the interface is down.

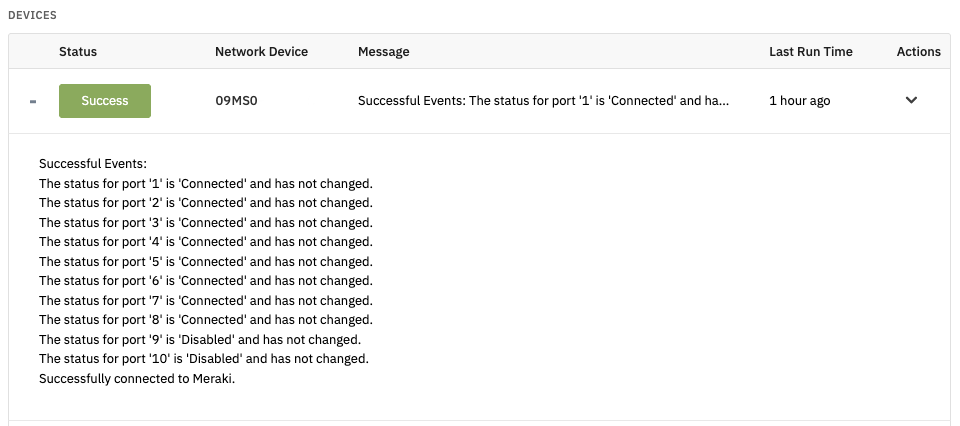

Sample Output​

Sample Output
