Meraki Uplink Event Monitor Reference Guide

Watches and alerts about the status of the WAN and cellular interfaces of your Meraki routers.

notitie

Overview​

The Meraki Router Uplink Event Monitor keeps an eye on the status of VPN links for all connected Meraki routers.

info

Use Cases​

  • Receiving alerts about WAN and cellular interface status changes
  • Getting alerted when any interface is down

Monitoring Options​

This event monitor provides the following options:

  • Alert with [Info/Warning/Error/Critical] if the Meraki API cannot be contacted: This monitoring option will send an alert of your choice if PIM+ cannot contact the Meraki API.

  • Alert with [Info/Warning/Error/Critical] if the WAN interface is down: Use this option to send an alert of your choice if the event monitor detects that the WAN interface for connected routers is down.

  • Alert with [Info/Warning/Error/Critical] if the cellular interface is down: This option will send an alert if the cellular interface is down.

  • Alert with [Info/Warning/Error/Critical] if the WAN interface status changes: This option will alert about any status change for your WAN interfaces.

  • Alert with [Info/Warning/Error/Critical] if the cellular interface status changes: Use this option to receive an alert of your choice if the event monitor detects a cellular interface status change.

Note: This event monitor only works with the "Router" Meraki device type.

Authentication and Security​

The authentication profile you choose must be of the type "Meraki" and include your Meraki API key.

Protocols​

Data Points​

This event monitor generates a data point for each port detected that denotes if the interface is up or down. If it's up, the event monitor will return a value of 1. The event monitor will return a value of 0 if the interface is down.

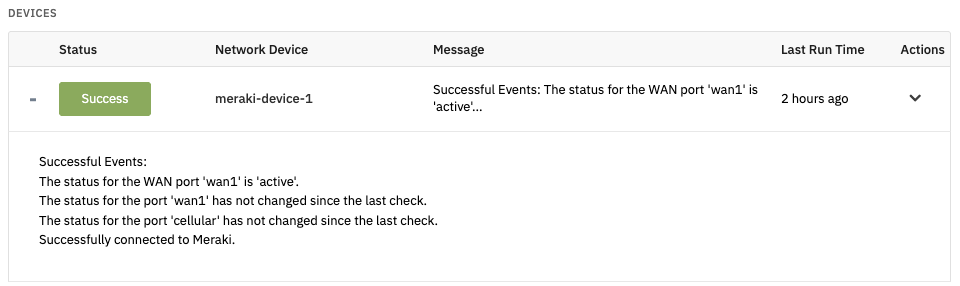

Sample Output​

Sample Output
