VMware Host Health Event Monitor Reference Guide
notitie
Overview
The VMware Host Health Event Monitor is designed to track various metrics and performance values for your VMware hosts, ensuring optimal operation and timely alerts for potential issues.
info
Use Cases
- Overall Host Health: Continuously monitor the health and performance of VMware hosts.
- Resource Availability: Ensure adequate disk space and memory are available on hosts.
- Performance Metrics: Monitor CPU usage, bandwidth, and response times.
Monitoring Options
waarschuwing
Alerts and Notifications
- Host Reachability: Alerts if PIM+ could not contact the VMware host.
- CPU Usage: Alerts when CPU utilization crosses specified thresholds.
- File Count: Alerts based on the number of files in specified directories.
- Disk Space Usage: Notifies when disk space on certain drives is running low. Drives to ignore can be specified using patterns like "deviceName(*)".
- Memory Usage: Alerts based on the percentage of used physical memory.
- Network Performance: Monitors ping response times and total, incoming, and outgoing bandwidth rates.
- Port Configuration: Supports custom SSH port settings if VMware hosts are using non-standard ports.
Authentication and Security
- Permissions Required: The account used for monitoring must have view permissions for the VMware REST API or administrative rights.
Protocols
Data Points
| Data Point | Description |
|---|---|
| Active Memory | The amount of memory that's currently in use. |
| Available Memory | The total memory available. |
| Available Memory % | The percentage of available memory. |
| Average CPU Readiness | The average CPU readiness, in percent. |
| Average Response Time | The average ping response time. |
| CPU Ready Time | The amount of time the CPU spent in a ready state. |
| CPU Usage | The percentage of CPU that's being used. |
| Space Used | The amount of space that's been used already. |
| Total: Incoming | The total incoming bandwidth for your VMWare host. |
| Total: Outgoing | The total outgoing bandwidth for your VMWare host. |
| Total Memory | The total memory for your VMWare host. |
| Used Memory | The amount of memory used. |
| Used Memory % | The percentage of memory used. |

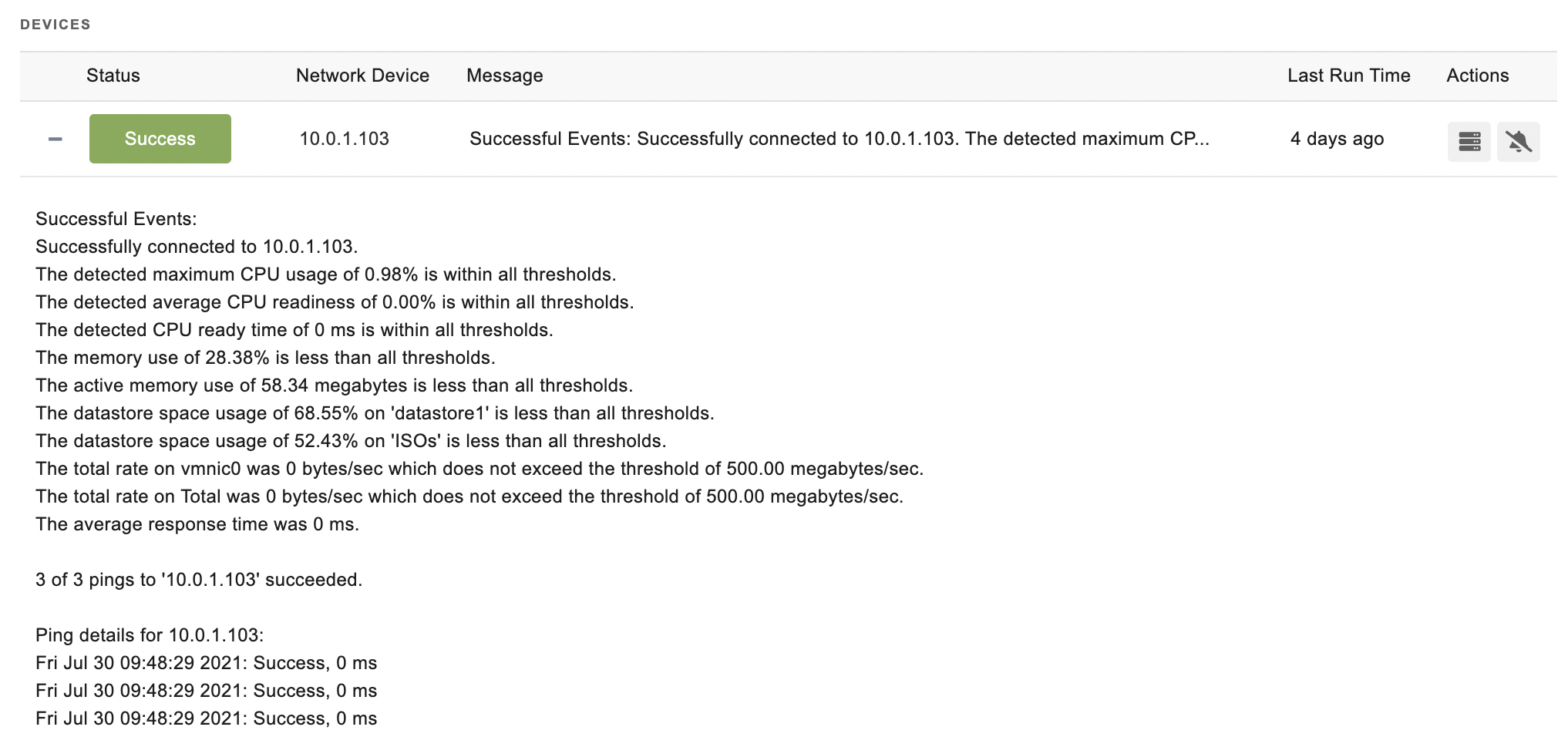

Sample Output
