VMware VMs Snapshot Event Monitor Reference Guide

notitie

Overview​

The VMware VMs Snapshot Event Monitor tracks snapshot space usage by VMware guests. It provides alerts related to snapshot sizes and ages, ensuring optimal storage management and snapshot maintenance.

info

Use Cases​

  • Snapshot Management: Alerts about old or excessively large snapshots that may need to be addressed to optimize storage.
  • Resource Utilization: Helps in managing storage resources by monitoring snapshot sizes and ages.

Monitoring Options​

Alerts and Notifications​

  • Device Connectivity: Alerts if the event monitor cannot contact the VMware host.
  • Snapshot Space Usage:
    • Per VM: Alerts if all snapshots for a single VM exceed a specified disk space.
    • Combined: Alerts if all snapshots combined exceed a specified amount of disk space.
  • Snapshot Age: Alerts if any snapshot is older than a specified number of days.

Snapshot Listing​

  • Snapshot Table: Option to include a table of snapshots in notifications, with choices to display all, the ten oldest, or the ten largest snapshots.

Exclusions​

  • Virtual Machines to Ignore: Specify VMs to exclude from monitoring.
  • Snapshots to Ignore: Specify snapshots to exclude from alerts.

Authentication and Security​

  • Permissions Required: The account used must have view permissions for the VMware REST API or administrative rights.

Protocols​

Data Points​

Data PointDescription
Oldest SnapshotThe age of the oldest snapshot found.
Total Snapshot SizeThe size of all snapshots combined.
Total SnapshotsThe total number of snapshots found.

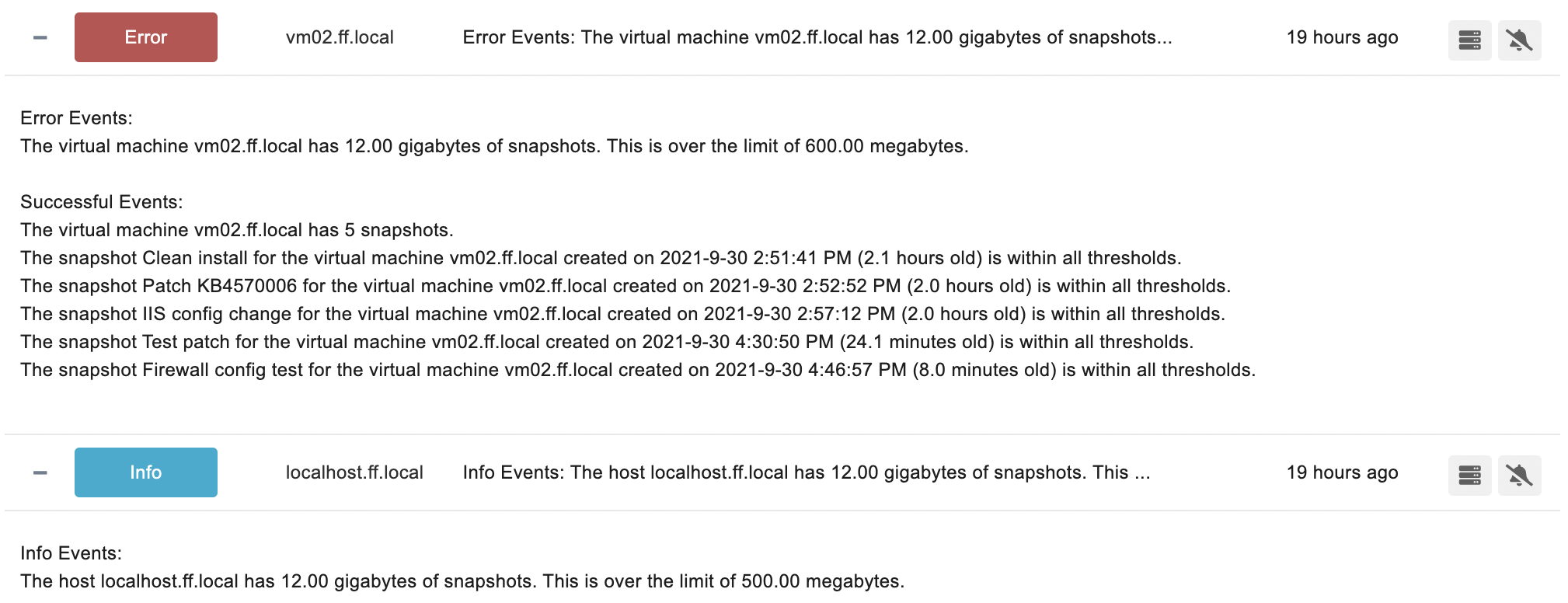

Sample Output​

Sample Output
