Multi-State

Multi-State Event Monitor​

The Multi-State Event Monitor checks the status of other event monitors and only alerts if some combination of them is in a failed state.

notitie

Overview​

The Multi-State Event Monitor alerts based on the state of other event monitors. For example, you can use it to be alerted only if five out of ten selected event monitors have failed.

info

Use Cases​

  • Alerting based on the status of multiple event monitors

Monitoring Options​

This event monitor provides the following options:

  • Event Monitors: Use the Monitor Chooser button to select the event monitors whose status will be checked.
  • Alert with [Info/Warning/Error/Critical] if [all|any] event monitors are failing: Alert if any or all of the selected event monitors are in a state other than Success.
  • Alert if there are more than a specified number of event monitors failing: Select thresholds for the number of event monitors that need to be failing before triggering an alert.
  • Include a list of all selected event monitor statuses: Each notification alert will show the list of selected event monitors and their current statuses.

Authentication and Security​

This event monitor does not require any authentication.

Data Points​

This event monitor does not generate any data points.

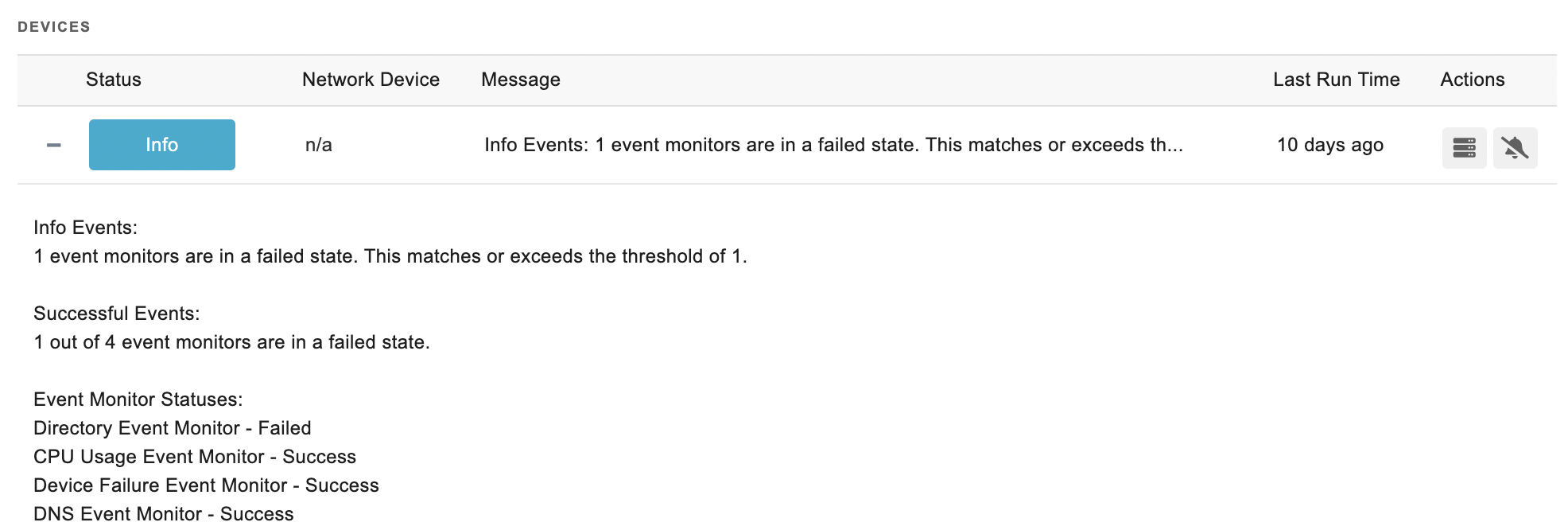

Sample Output​

Sample Output
