Business Process

Business Process Event Monitor

The Business Process Event Monitor monitors your process chains using graph data points that represent them.

notitie

Overview

The Business Process Event Monitor uses graph data points to monitor your process chains. It can alert based on the number of graph data points as well as the data that these points represent.

info

Use Cases

Monitoring the overall health of complex IT systems

Monitoring Options

This event monitor provides the following options:

Add New Unit: Add one or more units to your monitoring configuration. Then, add data points for each unit. The units start with a score of 100%. For each data point, select a penalty to apply based on the status. Optionally, choose a threshold to alert based on the score of this unit. In the event monitor's settings, you can also set alerts based on the combined score of multiple units.
Alert with [Info/Warning/Error/Critical] if one or more graph data points are not found: Be alerted if one or more datapoint is missing.
Alert if graph data points are older than a specified time span: Receive notifications when graph data points have become older than the age you specify.
Alert if the total calculated percentage is less than a specified threshold: Each unit begins with a score of 100%, diminishing with each penalty. Receive alerts when the total percentage for a unit drops below a specified percentage.

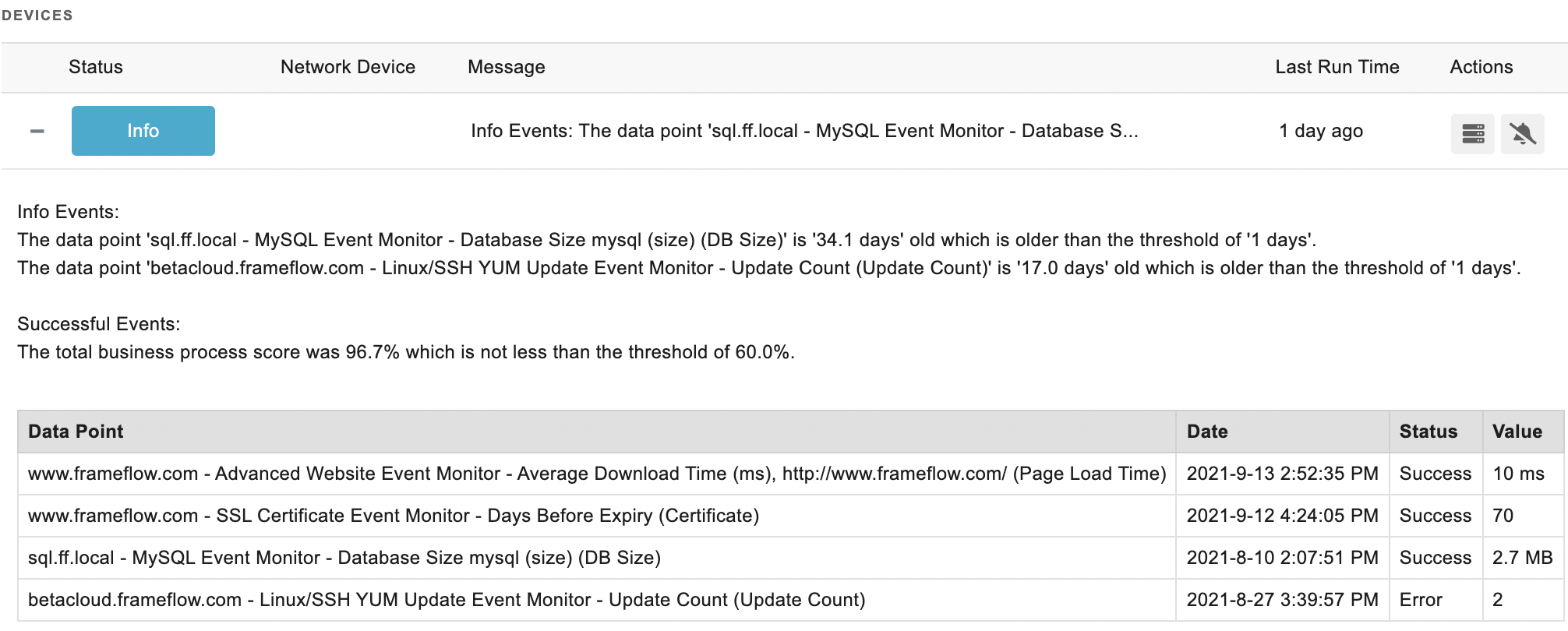

Include a table of all the graph data points: Include a table of your graph data points in the results of each event monitor run.

Authentication and Security

This event monitor does not require any authentication.

Data Points

This event monitor generates one data point for each unit you're monitoring. "Total score" is the only default data point.
